SM20 Rubber Wall System
The easiest of our solutions to self-install, yet still providing top-class soundproofing performance, and outstanding value.
About the system
The SM20 panel system is a high performance wall soundproofing solution aimed at those who want good acoustic performance. Unlike other solutions this dense recycled rubber is easy to fit and will provide a reliable soundproofing barrier.

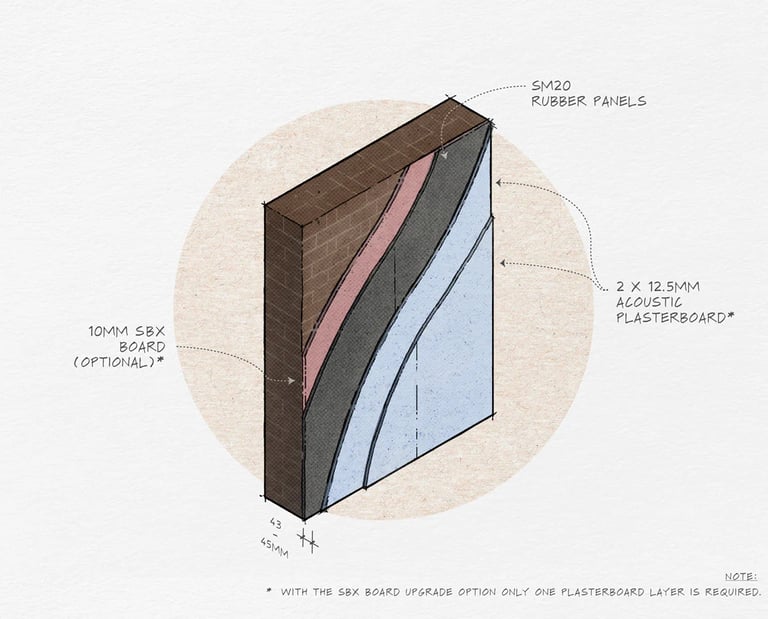

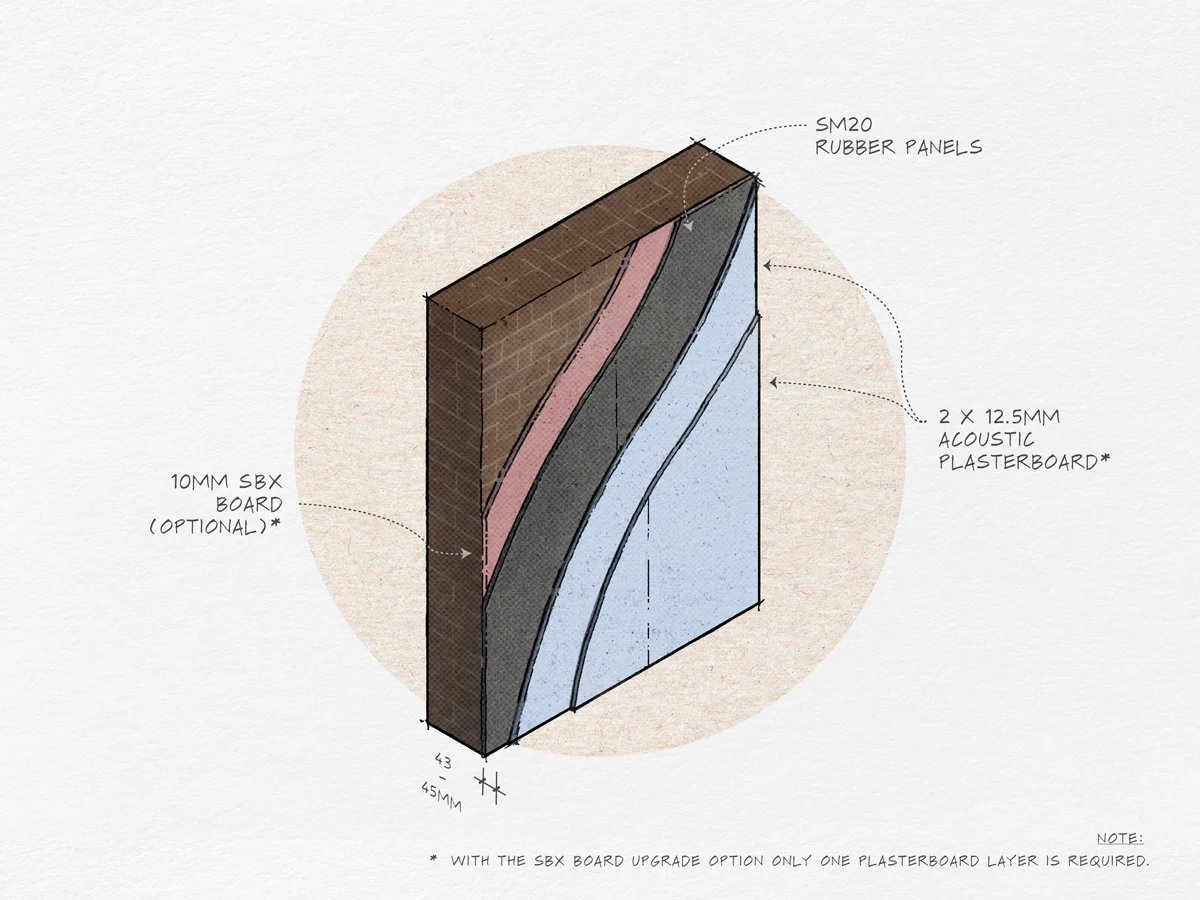

The SM20 insulation is a highly effective solution. Where the system, as shown in the diagram above, is employed, the performance of the single skin brick wall is increased to in excess of 48dB Dnt, W +CTr which exceeds Part E for party wall sound proofing requirements. This can be improved upon using the alternative upgrades we offer.
Installation
The system is straightforward to fit. The high density recycled acoustic rubber panels are simply cut to size and stuck to the party wall covering the whole offending surface. We provide the necessary proprietary adhesive. The wall is finished off by adding two layers of acoustic plasterboard.
